| Construction | Die cast aluminum housing and lamp head with powder coated finish |
| Color | White, black, or color on request |

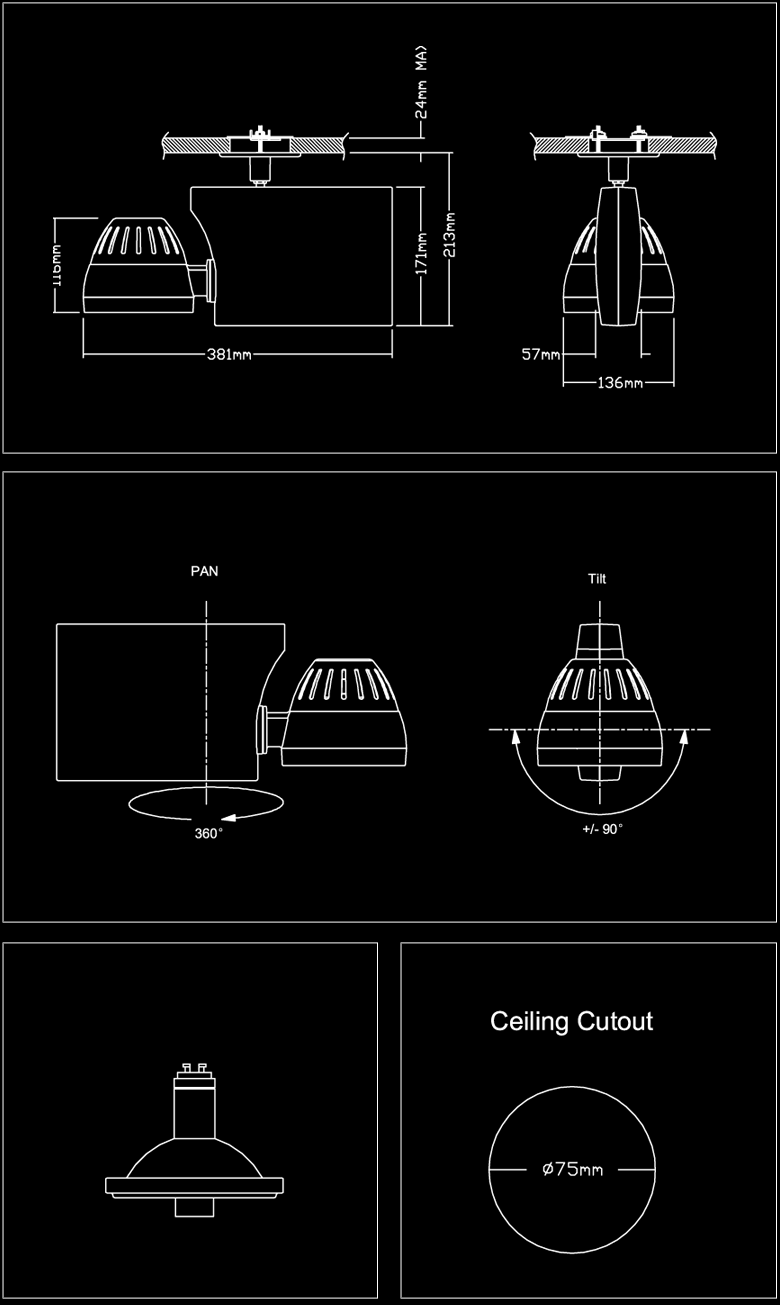

| Size | 381mm (L) x 136mm (W) x 213mm (H) |
| Voltage | 120-240V AC, 50/60Hz (Specify required rate when ordering) |
| Remote control distance | Min. 10 meters (Slight differences may occur. Depending on individual site conditions) |
| Lamp1 & Wattage | CDM-R111, 70W GX8.5 |
| Dimmable | Not available for metal halide lamps |
| Movement |
|
| Mounting | Monopoint |
| Max. ceiling thickness | 24mm |
| Min. ceiling clearance | 50mm |
| Ceiling cutout | Ø 75mm |
| Control options |
|
| Notes | 1 Lamp is excluded but options are available to order separately. |
| 2 DMX, DALI and Wi-Fi require additional setup charges. It must be specified when order. We will provide pre-installation guidelines. | |
| 3 Refer to separate section for photometric details. |
