| Construction | Die cast aluminum lamp head and metal housing with powder coated finish |
| Color | White, black, or color on request |

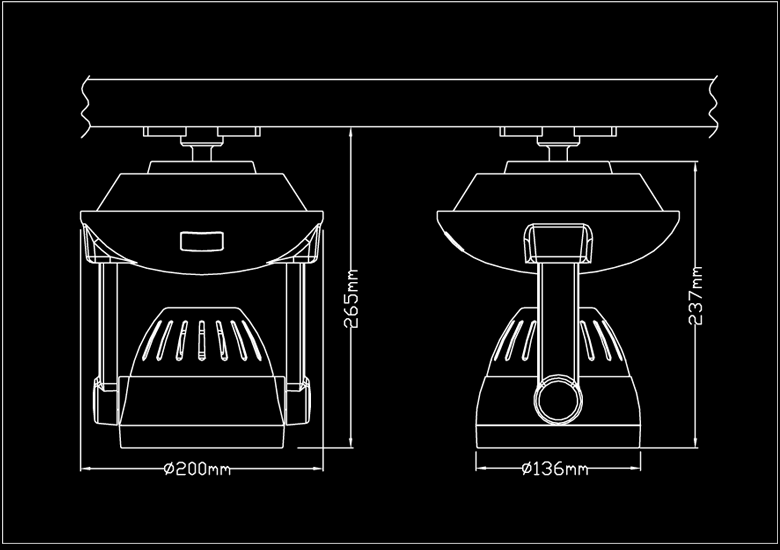

| Size | 200mm (D) x 288mm (H)1 |
| Voltage | 120-240V AC, 50/60Hz (Specify required rate when ordering) |
| Remote control distance | Min. 10 meters (Slight differences may occur. Depending on individual site conditions) |

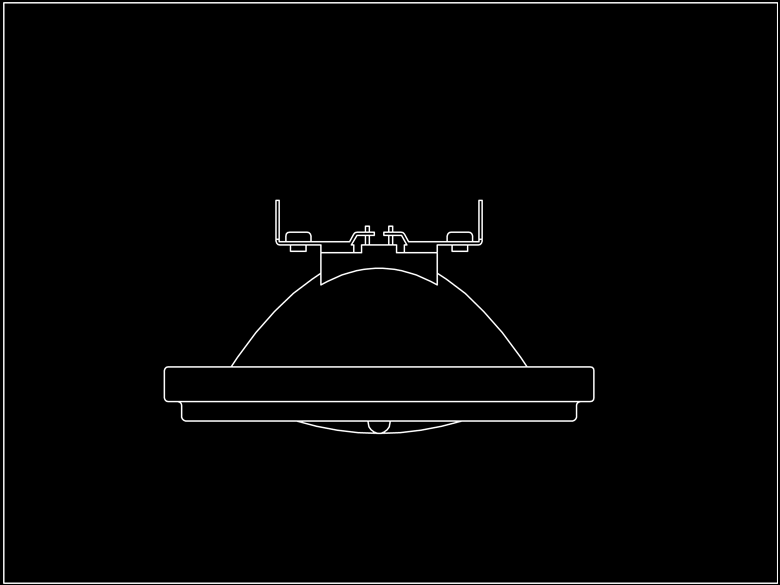

| Lamp2 & Wattage | Halogen QR111, 100W Max., 12V G53 |
| Dimmable | Internal dimming, 0-100%; Leading edge phase (External dimming available, specify dimming method when ordering)3 |

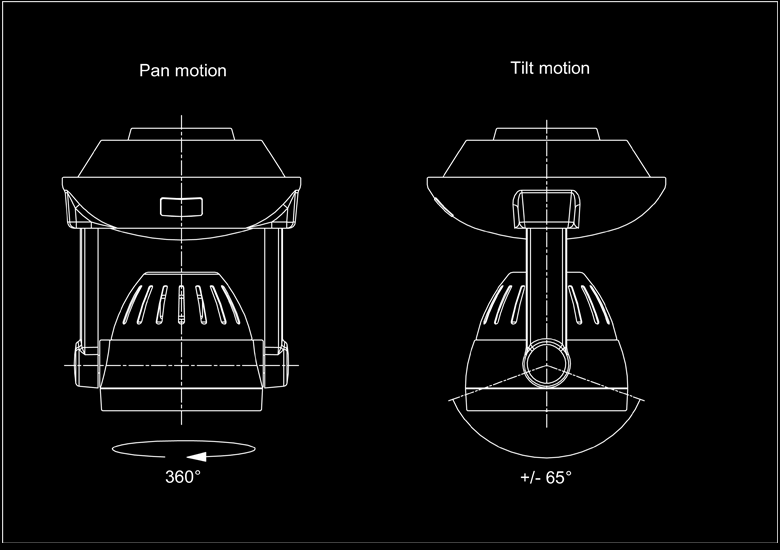

| Movement |
|
| Mounting | Track-mount, 3-circuit (Customized adaptor fitting is available, specify when ordering) |
| Control options |
|
| Accessories | Honeycomb louvre (specify when ordering) |
| Notes | 1 Track adaptor is included for height measurement. |
| 2 Lamp is excluded but options are available to order separately. | |
| 3 Fixture cannot be dimmed internally when it is customized as external dimming. Exact dimming system must be specified when ordering and ask for quote. | |
| 4 DMX, DALI and Wi-Fi require additional setup charges. It must be specified when order. We will provide pre-installation guidelines. | |
| 5 Refer to separate section for photometric details. |
